HikMicro Cheetah C32F-SL 850nm (with LRF)
Digital Nightvision Rifle Scope
HM-TR2E-32Q/W-C32F-SL.
HikMicro Cheetah C32F-SL digital nightvision rifle scope performs well under any lighting condition. It has an advanced 2560 x 1440 HD sensor and a 1920 × 1080 OLED display, which can capture any object in great detail and with rich clarity. Featuring a specific optical component it can detect more IR information in fog.
Key Features
● 2560 × 1440 high-definition sensor
● Supports Day/Night/Auto/Defog mode
● 1920 × 1080 resolution 0.49-inch OLED display

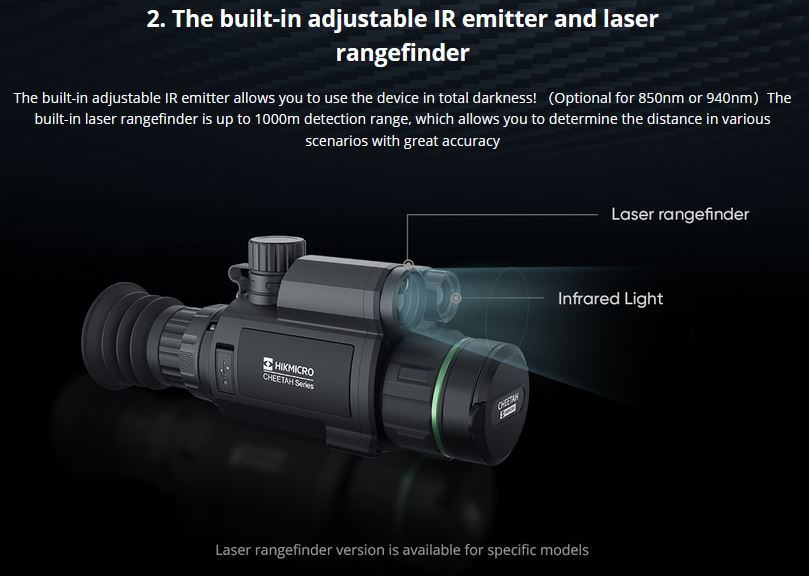

● Built-in adjustable IR emitter
● Supports Video and Snapshot recording (with audio)
● Built-in 64GB eMMC memmory card
● Supports recoil activated recording
● Built-in Laser Rangefinder, accurate measurement of distance (up to 1000m)
● Replaceable and Rechargeable Li-Ion battery
● Detection range up to 400 m
Specifications
| Main |
|
| Max. Resolution |
2560 x 1440 pixels |
| Lens (focal length) |
32 mm |
| Field of View |
8.1° x 6.1° |
| min. focus distance |
3 m |
| Frame Rate |
25 Hz |
| Aperture |
F 1.2 |
| Magnification |
2.7 x |
| IR-emitter (built-in) |
850nm (range up to 400 m) |
| Detection Range |
400 m (with IR 850nm ON) |
| Image Display |
|
| Display |
0.49-inch, OLED, 1920 ×1080 |
| Image Mode |
Day, Night, Auto, Defog |
| Exit pupil |
6 mm |
| Eye relief |
45 mm |
| Diopter |
-3 to +5 |
| System |
|
| Digital Zoom |
1X, 2X, 4X, 8X |
| Capture Snapshot |
Yes |
| Record Video |
Yes |
| Record Audio |
Yes |
| Recoil Activated Recording |
Yes |
| Standby mode |
Yes |

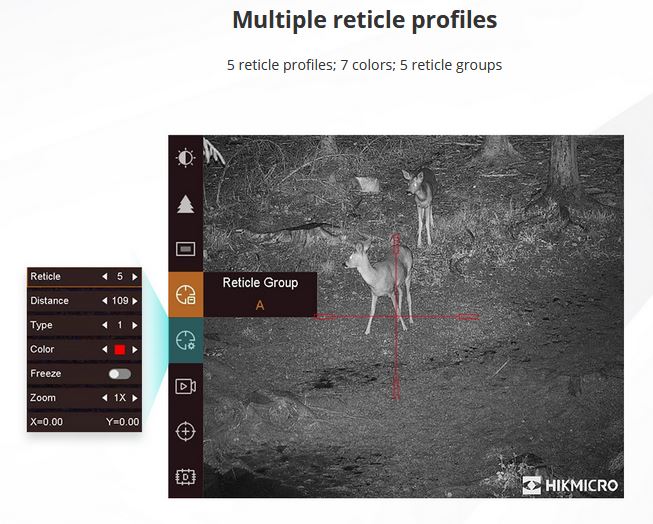

| Reticle |
Yes |
| PIP |
Yes |
| Freeze zeroing |
Yes |
| Storage |
Built-in 64GB eMMC |
| Power Supply |
|
| Battery |
Rechargeable Li-Ion Battery |
| Battery Operating Time |
5.5 h (25 °C, with IR, LRF and hotspot off) |
| Overvoltage protection |
Yes |
| General |
|
| Port |
Type-C |
| Working Temperature |
-30°C ~55°C |
| Protection Level |
IP67 |
| Dimension (L x W x H) |
217 mm × 70 mm × 87,2 mm |
| Weight |
477 g (without eyepiece and battery) |
| Laser Rangefinder |
|
| Laser Type |
905nm , Class 1 |
| min. Range measurement |
10 m |
| max. Range measurement |
1000 m |
| Accuracy |
+/- 4 ‰ |
Order includes:
1x Hikmicro Cheetah C32F-SL 850nm LRF (HM-TR2E-32Q/W-C32F-SL)
2x Battery (18650)
1x Battery Charger
1x USB Cable type-C
1x Protective case
1x Non-Dust Cloth
1x Quick Start Guide
