HikMicro Thunder Pro TQ50 thermal rifle scope
Handheld and Thermal rifleScope
HM-TR16-50XG/W-TQ50.
HikMicro Thunder Pro TQ50 Thermal Rifle Scope has a 640×512 12um thermal detector and 1024 × 768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
Key Features
● 640 × 512 12um thermal resolution, high sensitivity detector, NETD less than 35 mk(25°C,F#=1.0)
● Image processing technology: Adaptive AGC, DDE, 3D DNR
● 1024 × 768resolution 0.39-inch OLED display
● Supports distance measurement, and hotspot function
● Supports video recording and snapshot, built-in EMMC (16GB)
● Supports digital zoom and cursor function, palettes of color adjustable
● Observation distance up to 2600 m
Specifications
| Thermal Module |
|
| Image Sensor |
Uncooled Focal Plane Arrays |
| Max. Resolution |
640 x 512 pixels |
| Pixel pitch |
12um |
| Response Waveband |
8μm to 14μm |
| NETD |
< 35mk (@25 °C, F#=1.0) |
| Lens (focal length) |
50mm |
| IFOV |
0.24 mrad |
| Field of View |
8.78°× 7.03° |
| F Number |
F1.0 |
| Frame Rate |
50Hz |
| Magnification |
2.6x |
| Image Display |
|
| Display |
0.39-inch, OLED, 1024 ×768 |
| Palettes |
Black hot, white hot, red hot, fusion |
| Exit Pupil |
6mm |
| Eye Relief |
45mm |
| Detection Range |
2600 m |
| System |
|
| Digital Zoom |
1X, 2X, 4X, 8X |
| Reticle |
Yes |
| Hotspot |
Yes |
| Distance Measurement |
Yes |
| Record Video |
On-board video recording |
| Standby mode |
Yes |
| Capture Snapshot |
Yes |
| Hot Track |
Yes |
| PIP |
Yes |
| DPC |
Yes |
| Uniformity Correction |
Auto, Manual, External Correction |
| Storage |
Built-in EMMC 16GB |
| Power Supply |
|
| Battery |
Two Replacable Batterys
Type: CR123A or RCR123A |
| Battery Operating Time |
3.7 h (25 °C, with hotspot off) |
| Anti-reverse battery connection |
Yes |
| Overvoltage Protection |
Yes |
| Battery Capacity Display |
Yes |
| Type-C Power Supply |
5 VDC, 2 A
Supports external power supply |
| General |
|
| Port |
Type-C |
| Working Temperature |
-20°C ~55°C |
| Protection Level |
IP67 |
| Vibration & Shock |
750g / 1ms |
| Dimension (L x W x H) |
200,4 mm × 78,2 mm × 66,4 mm |
| Weight |
492 g (without eyepiece and batterys) |

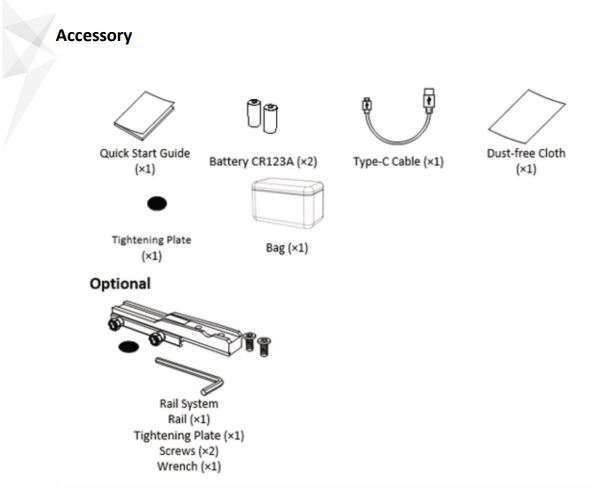

Order includes:
1x Hikmicro Thunder Pro TQ50 (HM-TR16-50XG/W-TQ50)
2x Battery (CR123A)
1x USB Type-C Cable
1x Protective Bag
1x Non-Dust Cloth
1x Quick Start Guide
