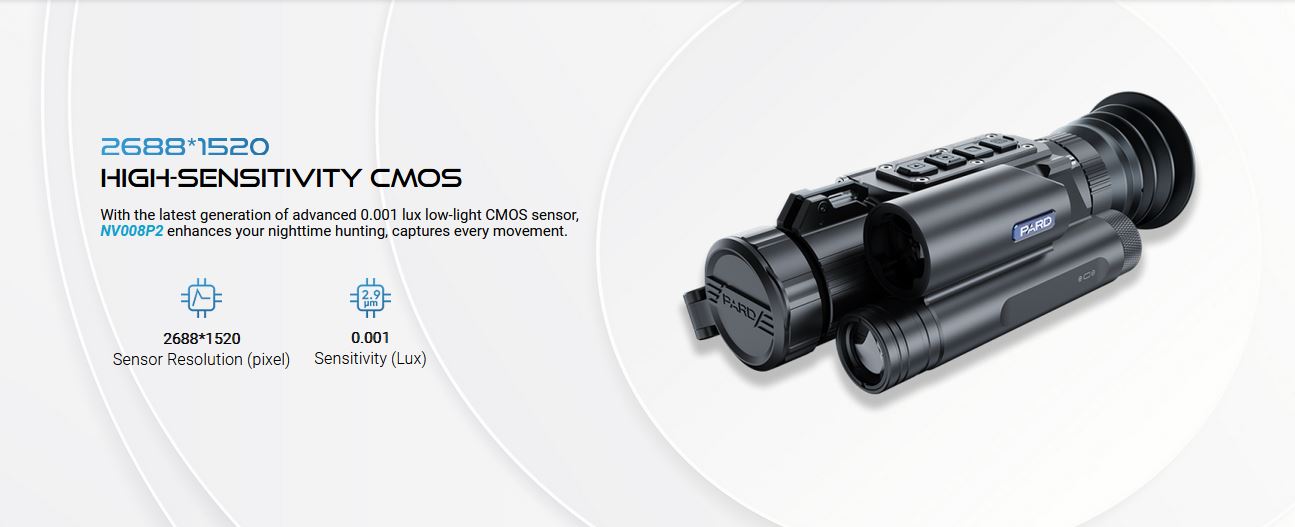

| Sensor |
| Type |
CMOS |
| Resolution(pixel) |
2688*1520 |
| Pixel Size(µm) |
2.9 |
| Sensitivity(lux) |
0.001 |
| Frame rate(Hz) |
Color mode:60/Mono:30 |
| Image Engine |
PARD VLEA |
| Optics |
| Objective Lens(mm) |
50/70 |
| Optical Magnification(x) |
4.5x/6.5x |
| Digital Zoom(x) |
2x |
| Continuous digital zoom(x) |
4.5-9x/6.5-13x |
| Field of view (Horizontal) |
6.4º/ 4.6º |
| Field of view (Vertical) |
4.8º/ 3.4º |
| Field of view (Diagonal) |
8.6º/ 5.7º |
| Focus range |
3m-∞ |
| Eye relief(mm) |
35 |
| Exit pupil(mm) |
6 |
| Diopter adjustment(D) |
± 5 |

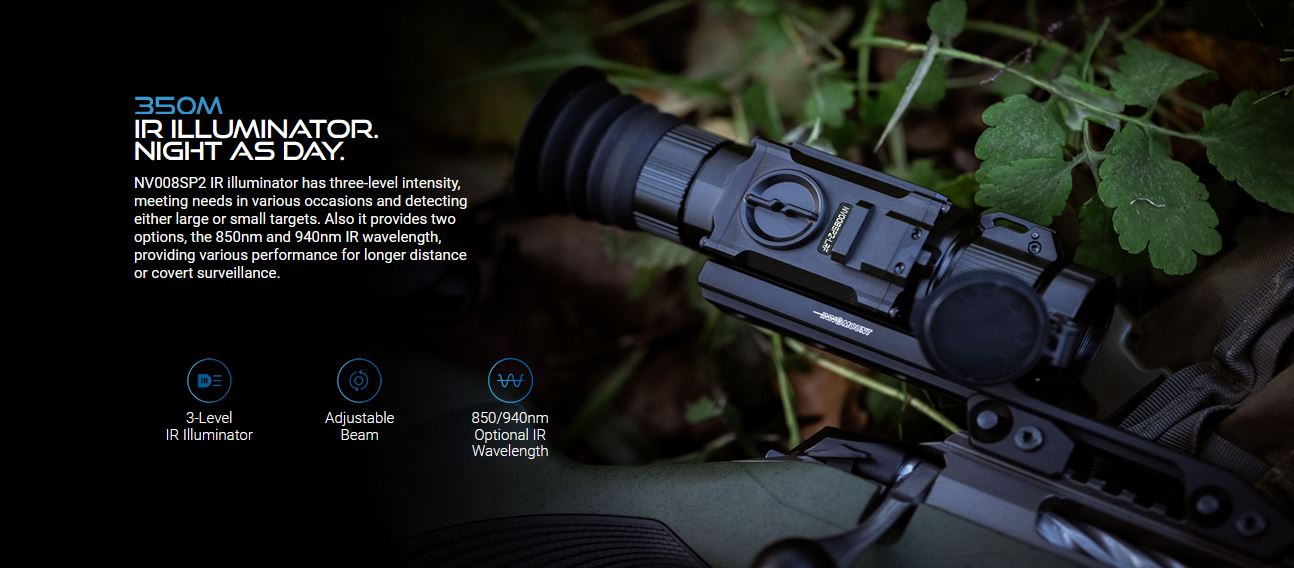

| IR Illuminator |
| IR Type |
VCSEL |
| IR power(W) |
5 |
| IR illuminating level |
3 Levels |
| IR distance(m) |
350 |
| IR Wavelength(nm) |
850/940 |
| Display |
| Type |
OLED |
| Resolution(pixel) |
1440*1080 |
| Reticle Style |
6 |
| Reticle Color |
white/yellow/green |
| Color mode |
Color/Black&white |
| Photo / Video |
| Photo resolution(pixel) |
– |
| Photo Format |
– |
| Video Resolution(pixel) |
1440*1080 |
| Video Format |
.mp4 |
| Storage(GB) |
Micro SD card (Max. 128GB) |
| Main function |
| Red dot |
Yes |
| Mute button |
Yes |
| PIP |
Yes |
| LRF detection range(m) |
5-1000(LRF version) |
| Ballastic caculator |
Yes |
| Range unit selection |
meter/yard |
| Gyroscope |
Yes |
| Self-activated recording |
Yes |
| Auto recording |
Yes |
| Loop recording |
Yes |
| Time stamp |
Yes |
| Record audio |
Yes |
| Beep sound |
Yes |
| Exposure compensation |
Yes |
| Connections |
| USB Type-C |
Yes |
| WiFi |
Yes |
| Supported Apps |
PardVision |
| Power Supply |
| Battery Type |
Lithium Ion18650 |
| Output Voltage(V) |
3.7 |
| Operating time(h,max) |
8 |
| External power supply(V) |
USB Type-C |
| Environmental characteristic |
|
| Operating temp(°C) |
-20 – 50 |
| Recoil Power(J) |
6000 |
| Measurement |
| Product dimension(L x W x H, mm) |
175 x 70 x 55 |
| N.W/pcs(with/without battery, g) |
495/450 |
