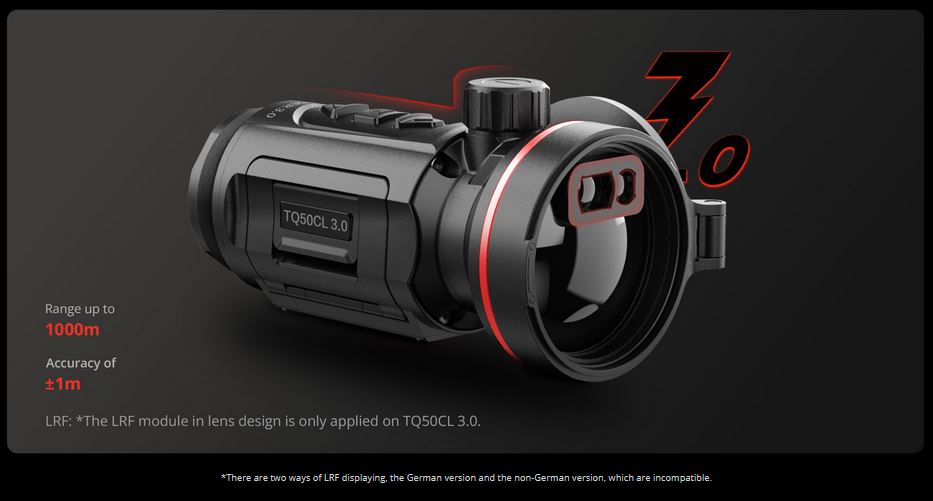

Hikmicro Thunder TQ50CL 3.0
|
|
| Thermal Module |
|
| Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution |
640 x 512 pixels |
| Frame rate |
50 Hz |
| Pixel interval |
12 μm |
| Response Waveband |
8μm to 14μm |
| NETD |
< 15mk (@25 °C, F#=1.0) |
| Lens (focal length) |
50 mm (F 1.0) |
| Detection range |
2600 m |
| Focus mode |
Focus Knob |
| Field of View (@ 100m) |
8,8° × 7,0° / 15,4m × 12,3m |
| Magnification |
1x |
| Image Display |
|
| Monitor |
0.49-inch, OLED, 1920 ×1080 |
| Palettes |
Black hot, white hot, red hot, fusion |
| FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
| Exit Pupil |
25 mm |
| Eye Relief |
20 mm |
| System |
|
| Record Video |
On-Board Video Recording |
| Recoil-activated Recording |
Yes |
| Audio Recording |
Yes |
| Capture Snapshot |
Yes |
| Hotspot |
Yes |
| Standby mode |
Yes |
| Hot Track |
Yes |
| Reticle |
No |
| Virtual reticle |
Yes |
| Image Calibration |
Yes |
| Zeroing Profiles |
5 |
| Storage |
Built-in EMMC 64GB |
| Power Supply |
|
| Battery Type |
Replacable and rechargeable Li-ion battery pack |
| Battery Operating Time |
> 6h (25 °C, with hotspot off) |
| Type-C Power Supply |
5 VDC, 2 A, Supports external power supply, supports direct charging |
| General |
|
| Working Temperature |
-30°C to +55°C |
| Protection Level |
IP67 |
| Dimension (L x W x H) |
149,4 mm × 76,0 mm × 74,6 mm |
| Weight |
540 g (with battery) |
