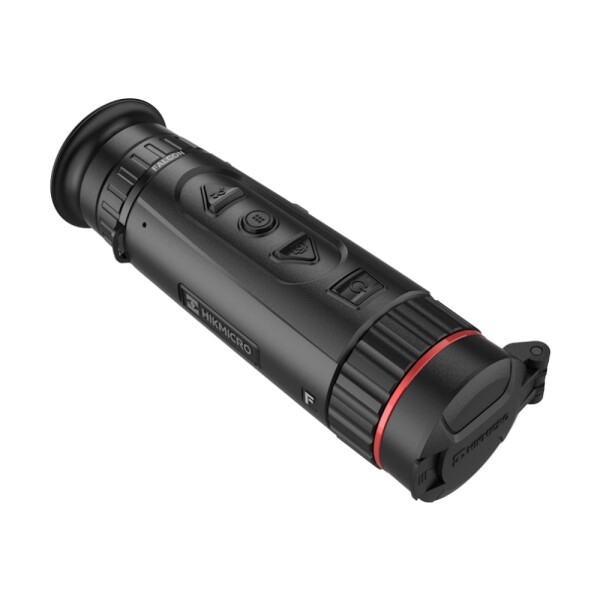

Hikmicro Falcon FQ35
Handheld Thermal Monocular
HM-TS46-35XG/W-FQ35
Hikmicro Falcon FQ35 handheld thermal monocular is equiped with a 640×512 12um infrared detector and 1024 × 768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, hiking and hunting, etc.
Key Features
● 640 × 512 12um thermal resolution, high sensitivity detector, NETD less than 20 mk(25°C,F#=1.0)
● Leading thermal image processing technology: Image Pro
● 1024 × 768 resolution 0.39-inch OLED display
● Up to 7 hours continuous operation
● Replaceable and Rechargeable Li-Ion battery
● Observation distance up to 2600 m
Specifications
| Thermal Module |
|
| Image Sensor |
VOx Uncooled Focal Plane Arrays |
| Max. Resolution |
640 x 512 pixels |
| Pixel pitch |
12um |
| Response Waveband |
8μm to 14μm |
| NETD |
< 20mk (@25 °C, F#=1.0) |
| Lens (focal length) |
35 mm |
| IFOV |
0.24 mrad |
| Field of View |
12.54° x 10.05° |
| F Number |
F1.0 |
| Frame Rate |
50Hz |
| Magnification |
1.82 x |
| Image Display |
|
| Display |
0.39-inch, OLED, 1024 ×768 |
| Palettes |
Black hot, white hot, red hot, fusion |
| Detection Range |
1800 m |
| System |
|
| Digital Zoom |
1X, 2X, 4X, 8X |
| Hotspot |
Yes |
| Record Video |
Yes |
| Standby mode |
Yes |
| Capture Snapshot |
Yes |
| Hot Track |
Yes |
| Hotspot |
Yes |
| Power Supply |
|
| Battery |
Rechargeable Li-Ion Battery |
| Battery Operating Time |
7 h (25 °C, with CVBS and hotspot off) |
| Power |
5V, 1.5W |
| General |
|
| Port |
Type-C |
| Working Temperature |
-30°C ~55°C |
| Protection Level |
IP67 |
| Dimension (L x W x H) |
190,3 mm × 58,3 mm × 65,2 mm |
| Weight |
505 g |

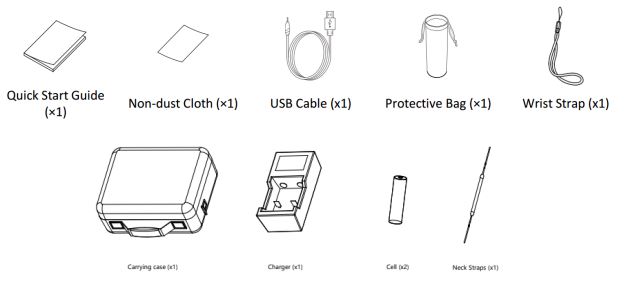

Order includes:
1x Hikmicro Falcon FQ35 (HM-TS46-35XG/W-FQ35)
2x Battery (18650)
1x Battery Charger
1x USB Cable type-C
1x Protective case
1x Protective bag
1x Non-Dust Cloth
1x Wrist Strap
1x Neck Strap
1x Quick Start Guide
